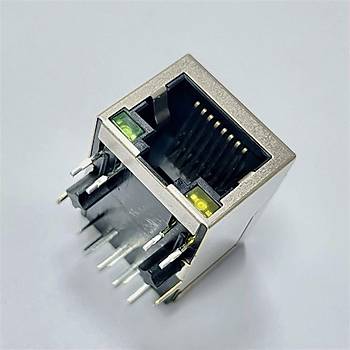

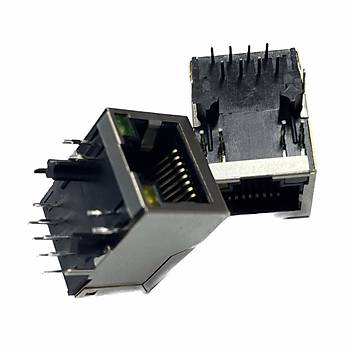

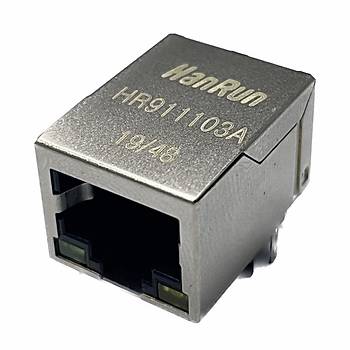

RJ45 HR911103A Hanrun Trafolu Ledli Ethernet Bağlantı Soketi

Feriot RJ45 HR911103A Hanrun Trafolu Ledli Ethernet Bağlantı Konnektörü Soketi 1 Adet

RJ45 Led + Bobinli Hanrun Ethernet Konnektörü - HR911103A

Ürün Özellikleri:

10/100Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LEDS

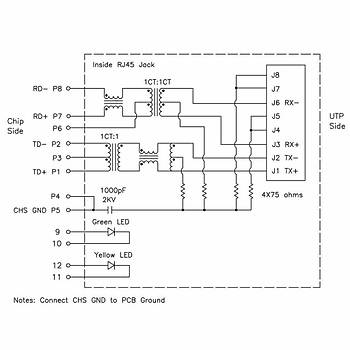

Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
 ROHS-6 peak wave solder temperature rating 260?
Operating temperarure range :0? to +70?
Storage temperature range :-40? to +85?
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm
LEDS:YES
EMI fingers:NO
LEFT LED:Green,RIGHT LED:Yellow
Usage:HR911103A/KRJ-125NL

Paket İçereği:

1 x Feriot RJ45 HR911103A Hanrun Trafolu Ledli Ethernet Bağlantı Soketi
